• Liverpool One Liverpool One
    Anodised aluminium interlocking soffit tray system and secret fix copings over canopied walkway at basement, ground and upper levels in main shopping complex.
  • Emirates Stadium Emirates Stadium, London
    Mill finish aluminium interlocking soffit tray and bullnose fascia system to pitch side and external elevations.
  • Queens Hospital Queens Hospital, Romford
    Polyester powder coated aluminium fascias, soffits, secret fix coping and louvres to external elevations.
  • Bury, The Rock Bury, The Rock
    Aluminium shingles, curved copings, ACM fascias and column casings
  • Victoria Gate Victoria Gate, Leeds
    Plasmet PR-600 tongue and groove aluminium rainscreen system with 20mm vertical and horizontal joints.
  • Albion Riverside Albion Riverside, London
    360 linear metres of facetted powder coated aluminium bullnose fascias with secret fix joint
Products / Rainwater Management

Plasmet manufactures a full range of gutter and rainwater pipes and accessories to suit all applications, from simple trimlines to more complex curved boundary wall profiles.

Gutters can be manufactured as either single skin or insulated composite construction to meet "U" values required by the architect or specifier.

Rainwater pipes are available as traditional visible fixed square or round pipe section section. Alternatively, the slimline secure downpipe system offers a hidden fixed downpipe where asthetical appearance or vandal resistance are important.

Available in a widerange of materials including pre or post galvanised steel, stainless steel, mill finish or polyester powder coated aluminium and Aquatite® thermo-polyolefin TPO or PVC Membrane, Plasmet rainwater systems provide an attractive, long lasting, and cost effective rainwater management solution.

Please select from one of the tabs below or use the navigation buttons to find out more.

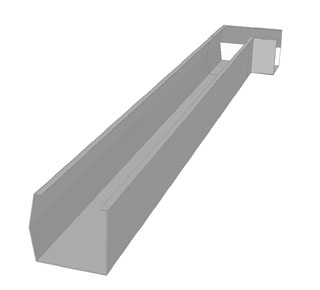

Trimline Gutters

Trimline gutters are manufactured in wide range of pre-coated materials and finishes including PVF2, Plastisol and Colourcoat HPS200®

Various jointing methods are available including standard joining straps and hidden fix brackets.

An additional internal protective coating of can be applied to further prolong the life of the gutter.

A complete range of ancillary items are also available including support brackets, outlets and stopends.

Single Skin Gutter

Single skin gutters are manufactured as either boundary wall or valley profiles and fabricated from either 2mm or 3mm thick galvanised steel or aluminium. Aluminium gutters are supplied as either mill finish or polyester powder coated after manufacture.

Supplied in lengths of upto 3 metre sections, joggled joints and slotted holes formed along one edge of the gutter provide easy and quick installation.

To complement the gutters, a full range of ancillary products are available including:

  • Stop Ends including welded and loose
  • Outlets including welded, loose, tapered and transitional
  • Welded Mitred Corners and Tee-Sections
  • Sump boxes
  • Wier overflows
  • Full range of fixing brackets

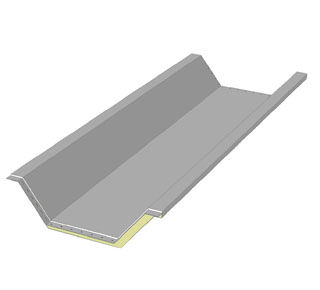

Insulated Gutters

Plasmet's insulated boundary and valley gutters are manufactured with either a galvanised steel or aluminium upper skin and steel white liner lower skin. The thickness of the rigid PIR insulation core is designed to meet the correct U-value as specified.

Various joining options are available including bolted joggled joints, captive clip nuts and welded expansion joints

To complement the gutters, a full range of ancillary products are available including:

  • Stop Ends including welded and loose
  • Outlets including welded, loose, tapered, and transitional
  • Welded Mitred Corners and Tee-Sections
  • Sump boxes
  • Wier overflows
  • Full range of fixing brackets

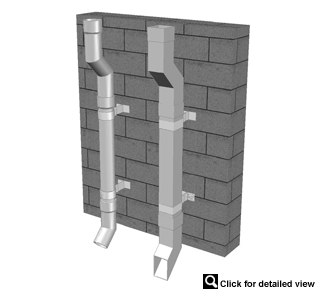

Standard Downpipes

To complement our gutter systems, Plasmet manufactures a variety of square and round down pipes in pre-coated steel and aluminium down pipes with sizes available from 50mm to 150mm.

Aluminium down pipes can be supplied in either mill or polyester powder coated finish to improve asthetical appearance. Optional welded collars or integrally formed joints are available for connecting long spans. Pre-coated steel down pipes are available with either loose or rivetted joining collars

A full range of ancillary products are also available including:

  • Swannecks
  • Fixing brackets
  • Y-Junctions
  • Shoes
  • Rodding access plates
  • Hoppers and Outlets

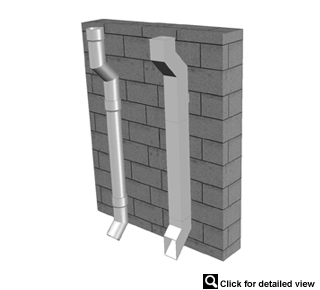

Secure Downpipes

Plasmet's secure flush-fix down pipe is an alternative to the traditional visible fix rainwater pipes where vandal resistance or improvement to the asthetical appearance is important. Down pipes are fitted with an integral welded slimline bracket fixed directly to the wall with no projecting profiles.

A full range of flush-fix ancillary products are also available including:

  • Swannecks
  • Fixing brackets
  • Y-Junctions
  • Shoes
  • Rodding access plates
  • Hoppers and Outlets

All gutters are supplied with all necessary fixings and mastic sealant unless requested otherwise. Shorter lengths are can be manufactured for ease of site installation.
