• Liverpool One Liverpool One
    Anodised aluminium interlocking soffit tray system and secret fix copings over canopied walkway at basement, ground and upper levels in main shopping complex.
  • Emirates Stadium Emirates Stadium, London
    Mill finish aluminium interlocking soffit tray and bullnose fascia system to pitch side and external elevations.
  • Queens Hospital Queens Hospital, Romford
    Polyester powder coated aluminium fascias, soffits, secret fix coping and louvres to external elevations.
  • Bury, The Rock Bury, The Rock
    Aluminium shingles, curved copings, ACM fascias and column casings
  • Victoria Gate Victoria Gate, Leeds
    Plasmet PR-600 tongue and groove aluminium rainscreen system with 20mm vertical and horizontal joints.
  • Albion Riverside Albion Riverside, London
    360 linear metres of facetted powder coated aluminium bullnose fascias with secret fix joint
Products / Soffit Systems

Plasmet soffit systems are individually manufactured to order, and offer an attractive, cost effective bespoke solution designed to suit each individual project. Three systems accross the range provide a wide range of sizes, materials, finishes, colours and fixing options. Each system is configurable to cover many applications with the options of integrated venting, to more complex styles and profiles including facetts and curves. All profiles are available in our standard and non-standard range of materials and finishes.

Please select from one of the tabs below or use the navigation buttons to find out more.

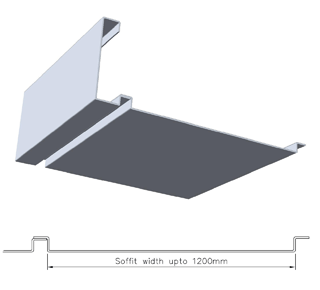

Standard Soffit System
The standard aluminium soffit system provides a practical and low-cost soffit solution.

Soffits are face fixed through recessed joints and colour matched fixings are used to reduce their visual impact. Optionally a gasket may be inserted along the recessed joint to improve aesthetical appearance.

Please click here to download specification for this product.

Please click here to download PDF detail.

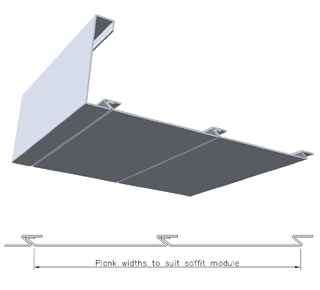

Plank Soffit System
Plasmet's aluminium plank soffit system provides the traditional concealed fixed "shiplap" appearance.

Supplied in 3 metre lengths as standard, planks are supplied pre-cut to suit soffit module widths and designed to intergrate with windows, columns, mullions or other gridline influences.

Soffits are manufactured as either straights or tapers to follow curved areas of the building geometry

Please click here to download specification for this product.

Please click here to download PDF detail.

Interlocking Soffit System

Plasmet's Interlocking soffit system offers an alternate secret fix solution to the traditional plank system. Visible fixings are eliminated using an integral 'male' and 'female' interlocking formed profile which provides a seamless, integral soffit line.

Soffits up to 1.5m wide can be accomodated in a single panel with the recessed shadow gap adjacent to the wall accomodating normal building tolerances. Panels are generally supplied in lengths upto 3 metres and can be modulated to align with gridlines if required.

Please click here to download specification for this system.

Please click here to download PDF detail.

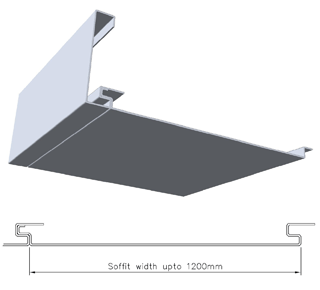

Soffits are manufactured with either standard or secret fix joints and designed to integrate seaminglessly with Plasmet's fascia profiles. Lengths are available up to 4 metres, however, this may vary according to material, thickness and colour. Please contact us for specific requirements.
